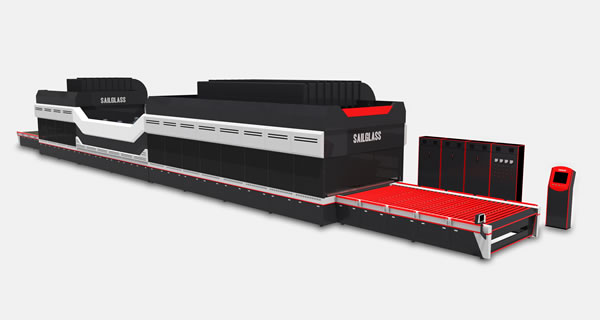

New forced convection type glass tempering furnace based on our ordinary type and passing type,re-designed, improved and replaced ‘old types in glass processing industry field.It marks senior glass,normal glass and low-e glass to achieve ideal standard in glass deep processing craft.
Characteristie
Matrix radiation and heating and grid-array forced convection heating is combined.
During glass run come and forth,grid-array forced quench blow evenly to ensure the even heati-ng coverage.
Heat resistant stainless steel material is adapted in heating chamber,ensure durable performance without distortion.
Hcating clcmonts arc mado of Ni-Cr clcctrothormal alloy,cnsuro hcating cvcnly,stcadiliy,flocty and long working life.
Thermal cycling quench blower is controled by inverter,eunsure air disributed on glass evenly.
Ceramic roller gear three-slot transmission ,interlocking,a fundamental solutiong to the channeling films,scratches caused by the transmission of sync.
Above six points adapt touch PC control.It up-graded to multi-point touch.“Hidden-trouble al-arm” and “Fault alarm” functions are added and imporves white mist,stress spots,scratches.

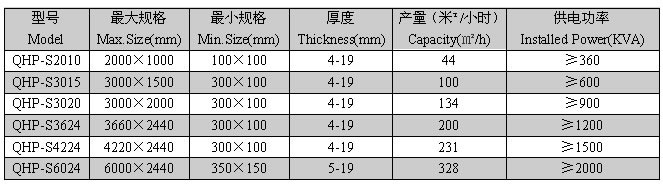

Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Mainly in:Architecture,decoration,home apliance and industrial instrument glass etc.

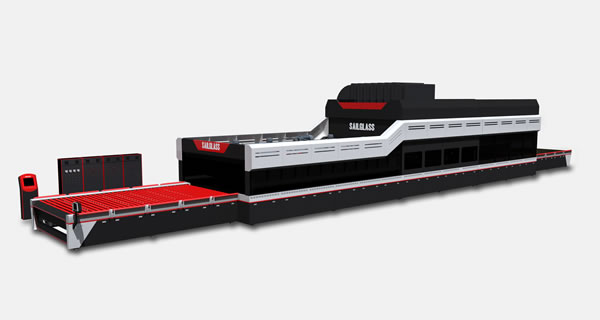

Characteristic
Controlling teachnique of blower with inverter is used to achieve the goal of saving energy.
The use of touch controlling technology,it is easy and accurate to oerate.
Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Mainly in : Architecture,decoration,home appliance and industrial instrument glass etc.
Characteristic
Passing quenching researched and deveioped by ourselves,it owns outstanding energy-saving feature.
Perfect struture of quenching and cooling section display tempering technique essence.
Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Characteristic
Glass curvature is automaticaily controlled. Opearting easily and accurately.
Distinctive press-roller structure ensures temeed glass quality is more perfect.
Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Mainly in:Architecture curtain wall,big size windshield and sidelite of automotive and snower booth etc.
Characteristic
Large curved sedment to produce more big bending glass.
Unique bending chiller design to ensure glass forming ferfectly.
Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Mainly in: Architecture curtain wall,home appliance,shower booth etc.
Characteristic
Double chamber heating is adapted,reducing heating time,incresaing production nearly doubled and energy-saving significantly.
Controlling teachnique of blower with inverter is used to achieve the goal of saving energy.
Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Mainly in:Solar energy,Photovoitaic lighting,civil household appliancces,architecture glass,large qu-antity of furniture, bathroom glass etc.

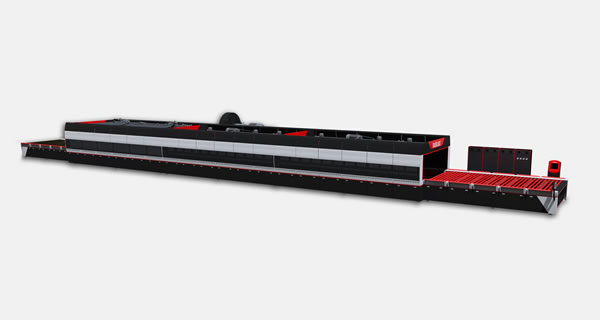

Characteristic
The heating oven s much longer than usual,glass need not to reciprocate in heating oven,and thus the capacity is raised to the maximum.
Continous and exposed heating system reduce friction and be heated evenly.
Exposed heating way to ensure glass heated evenly.
Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Mainly in: Windshield and sidelite of automotive,shower booth and smoke exhaust ventilator etc.
Characteristic
The use of mold static pressure and forming instantly technology to ensure more accurate glass pro-ducing.

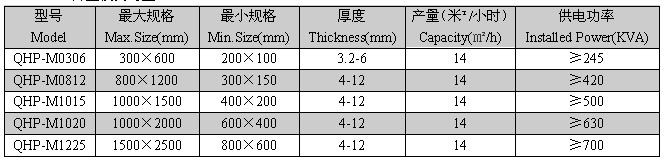

Parameters
Remarks:in the table the size take the millimeter as a unit.The output according to 5 millmeter glass 80% loading rate and 100% rate of finisshed products computation. Glass thickness scope fluc-tuation can cause capacity change.
]]>
Mainly in : small size tempered glass piece used in all kinds of industrail instruments.

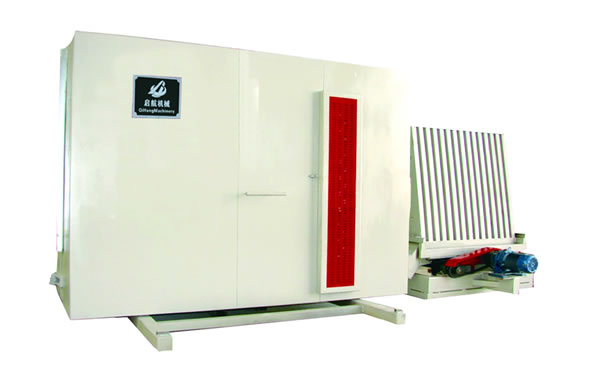

Characteristie
Without limitation of roller pitch and baffling of roller,this type of furnace can process glass of very small size with better quality.Glass surface have no scratch.
]]>
We have a professional and dedicated sales/after sales team to provide all-around single-stop-type services.
Excluding remote fault,diagnosising and rograms upgrading by internetwork.
Perfect technical traning and instruction to exclude all worries.
High quality of glass end products and equipments to creat promissing future with you.
]]>
